UPR Products 2021-2025 Ford F-150 / Raptor / Expedition 3.5L EcoBoost Plug N Play Dual Valve Catch Can System
The UPR Plug N Play Dual Valve Catch Can system is the perfect fit for your 2021-2025 Ford F-150 3.5L EcoBoost, including Raptor and 2022-2024 Expedition.
or as low as $41.67/mo with Affirm
Available
30-60 minute install, no drilling, no tune required. Watch the full walkthrough before you start.
Overview
The UPR Plug N Play Dual Valve Oil Catch Can with CSS is the full-spectrum PCV protection kit for 2021-2025 Ford F-150 3.5L EcoBoost (Raptor included) and 2022-2024 Expedition 3.5L. Dual-valve architecture – dirty-side catch can on one path, Clean Side Separator (CSS) on the other – traps oil vapor going INTO the intake AND oil mist being pushed out of the clean side under boost. The system tuned F-150s, Raptors, and loaded Expeditions actually need.
Most catch cans are dirty-side only – they work at idle and cruise but do nothing when the turbos spool. The Clean Side Separator wires into the factory crankcase sensor and catches oil mist being forced OUT of the clean side when the engine is under boost – exactly when a tuned 3.5L EcoBoost pushes the most oil vapor. No CEL. No EPS interference. No tune required. This is the kit UPR designed for trucks that actually get driven hard.
Fitment
| Year | Platform | Engine |
|---|---|---|
| 2021-2025 | Ford F-150 (including Raptor) | 3.5L EcoBoost V6 |
| 2022-2024 | Ford Expedition | 3.5L EcoBoost V6 |
Does NOT fit PowerBoost Hybrid. Does NOT fit 2.7L EcoBoost. Does NOT fit 5.0L Coyote V8 – those get different UPR kits.
Construction
| Component | Spec |
|---|---|
| Body material | Domestic T-6 6061 aluminum bar stock, CNC-machined |
| Finish | Black anodized |
| Standard capacity | 8 oz (3 in x 6 in) |
| MEGA upgrade capacity | 12 oz (4 in x 7.5 in) – available in dropdown above |
| Internal separation | Patented 4-stage multi-chamber diffuser |
| Hose | 5/8 in oil-resistant Continental braided hose |
| Fittings | Plug N Play quick-release factory-style – bolt-on, bolt-off, no residual marks for stock restore |
| Origin | Made in USA (Lake Worth, FL) |

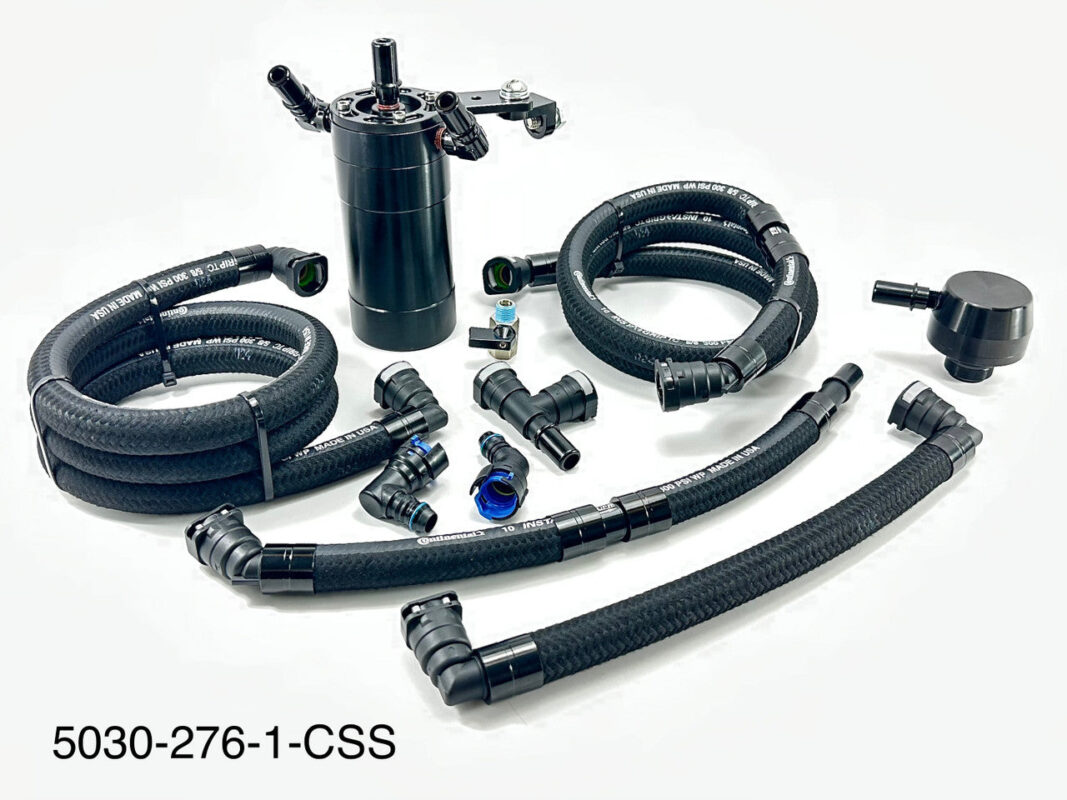

What’s Included
- Billet dirty-side catch can body (black anodized, 8 oz standard)
- Clean Side Separator (CSS) wired into factory crankcase sensor
- 5/8 in Continental braided hose (pre-cut)
- Billet hose end covers + Plug N Play quick-connect fittings
- Mounting bracket + hardware
- Install instructions + routing diagram
- Optional add-ons per your dropdown selections above (MEGA upgrade, dual Pro-Series check valves, one-way valve cover breather, drain line kit)
Installation
- Time: 30-60 minutes for a first-timer.
- Difficulty: Plug-and-play. No drilling, no tune, no wiring modifications beyond the CSS factory-sensor connection.
- Tools: 10mm socket, flat-blade screwdriver for PCV quick-connect release, pliers for hose-end retention clips.
- Bracket mount: OEM hard points – bolts to factory-tapped locations.
- CSS wiring: Plugs inline to the factory crankcase sensor – no splicing, no tuning. Simply unclip the factory connector, plug CSS harness between sensor and truck, re-clip.
- First drain: Check after 500-1000 miles. On a tuned F-150 or Raptor expect 2-4 oz on the first check. Drain interval stretches as the engine stabilizes.
- Video walkthrough: Full visual guide embedded at the top of this page.
Companion UPR Parts
Stock up on replacement + upgrade components (also available as add-ons in the dropdowns above):
- UPR 5030 Series Replacement O-Ring Kit [2030-02] – $19.99
- UPR SS Magnetic Drain Plug [H5032-048] – $9.99
- UPR Oil Catch Can Drain Line Kit [H5032-49] – $39.99
- UPR Adjustable Hi-Flo Billet PCV Valve [5045-24] – $49.99
- UPR Pro-Series Billet Check Valve 5/8 in [5044-03] – $49.99 each
Compliance
This part is NOT CARB-certified and is for racing / off-road use only. NOT for sale or use in California. UPR does not issue a CARB EO for this product. If you’re in California, check your state emissions requirements before ordering.
Outside California with a state-legality question? Call 805-267-9762 before ordering.
Installation & Support
Based in Thousand Oaks, CA. Shop rate $250/hr if you want us to install. Most F-150 and Raptor owners knock this out in the driveway in under an hour. Call 805-267-9762 or tap “Talk to Expert” to coordinate, or if you’re running a tune and want to confirm you should go MEGA capacity. UPR authorized dealer – warranty claims route through us directly.
UPR offers unconditional lifetime warranty on all their manufactured products. Free ground shipping on orders above $99 (48 states).
